Full docker example #

This docker compose configuration will run Vikunja with backend and frontend with a mariadb database. It uses an nginx container or traefik on the host to proxy backend and frontend into a single port.

For all available configuration options, see configuration.

NOTE: If you intend to run Vikunja with mysql and/or to use non-latin characters make sure your db is utf-8 compatible.
All examples on this page already reflect this and do not require additional work.

Table of contents

Redis #

While Vikunja has support to use redis as a caching backend, you’ll probably not need it unless you’re using Vikunja with more than a handful of users.

To use redis, you’ll need to add this to the config examples below:

version: '3'

services:
  api:
    image: vikunja/api
    environment:
      VIKUNJA_REDIS_ENABLED: 1
      VIKUNJA_REDIS_HOST: 'redis:6379'
      VIKUNJA_CACHE_ENABLED: 1
      VIKUNJA_CACHE_TYPE: redis
    volumes:
      - ./files:/app/vikunja/files
  redis:
    image: redis

PostgreSQL #

Vikunja supports postgres, mysql and sqlite as a database backend. The examples on this page use mysql with a mariadb container. To use postgres as a database backend, change the db section of the examples to this:

db:
  image: postgres:13
  environment:
    POSTGRES_PASSWORD: secret
    POSTGRES_USER: vikunja
  volumes:
    - ./db:/var/lib/postgresql/data
  restart: unless-stopped

You’ll also need to change the VIKUNJA_DATABASE_TYPE to postgres on the api container declaration.

NOTE: The mariadb container can sometimes take a while to initialize, especially on the first run. During this time, the api container will fail to start at all. It will automatically restart every few seconds.

Sqlite #

Vikunja supports postgres, mysql and sqlite as a database backend. The examples on this page use mysql with a mariadb container. To use sqlite as a database backend, change the api section of the examples to this:

api:
  image: vikunja/api
  environment:
    VIKUNJA_SERVICE_JWTSECRET: <a super secure random secret>
    VIKUNJA_SERVICE_FRONTENDURL: http://<your public frontend url with slash>/
    # Note the default path is /app/vikunja/vikunja.db This moves to a different folder so you can use a volume and store this outside of the container so state is persisted even if container destroyed.
    VIKUNJA_DATABASE_PATH: /db/vikunja.db
  ports:
    - 3456:3456
  volumes:
    - ./files:/app/vikunja/files
    - ./db:/db
  restart: unless-stopped

The default path Vikunja uses for sqlite is relative to the binary, which in the docker container would be /app/vikunja/vikunja.db. This config moves to a different folder using VIKUNJA_DATABASE_PATH so you can use a volume at /db and store this outside of the container so state is persisted even if container destroyed.

You’ll also need to remove or change the VIKUNJA_DATABASE_TYPE to sqlite on the api container declaration.

You can also remove the db section.

NOTE: If you'll use your instance with more than a handful of users, we recommend using mysql or postgres.

Example without any proxy #

This example lets you host Vikunja without any reverse proxy in front of it. This is the absolute minimum configuration you need to get something up and running. If you want to host Vikunja on one single port instead of two different ones or need tls termination, check out one of the other examples.

Note that you need to change the VIKUNJA_API_URL environment variable to the ip (the docker host you’re running this on) is reachable at. Because the browser you’ll use to access the Vikunja frontend uses that url to make the requests, it has to be able to reach that ip + port from the outside. Putting everything in a private network won’t work.

version: '3'

services:
  db:
    image: mariadb:10
    command: --character-set-server=utf8mb4 --collation-server=utf8mb4_unicode_ci
    environment:
      MYSQL_ROOT_PASSWORD: supersecret
      MYSQL_USER: vikunja
      MYSQL_PASSWORD: secret
      MYSQL_DATABASE: vikunja
    volumes:
      - ./db:/var/lib/mysql
    restart: unless-stopped
  api:
    image: vikunja/api
    environment:
      VIKUNJA_DATABASE_HOST: db
      VIKUNJA_DATABASE_PASSWORD: secret
      VIKUNJA_DATABASE_TYPE: mysql
      VIKUNJA_DATABASE_USER: vikunja
      VIKUNJA_DATABASE_DATABASE: vikunja
      VIKUNJA_SERVICE_JWTSECRET: <a super secure random secret>
      VIKUNJA_SERVICE_FRONTENDURL: http://<your public frontend url with slash>/
    ports:
      - 3456:3456
    volumes:
      - ./files:/app/vikunja/files
    depends_on:
      - db
    restart: unless-stopped
  frontend:
    image: vikunja/frontend
    ports:
      - 80:80
    environment:
      VIKUNJA_API_URL: http://<your-ip-here>:3456/api/v1
    restart: unless-stopped

Example with traefik 2 #

This example assumes traefik version 2 installed and configured to use docker as a configuration provider.

We also make a few assumptions here which you’ll most likely need to adjust for your traefik setup:

  • Your domain is vikunja.example.com
  • The entrypoint you want to make vikunja available from is called https
  • The tls cert resolver is called acme
version: '3'

services:
  api:
    image: vikunja/api
    environment:
      VIKUNJA_DATABASE_HOST: db
      VIKUNJA_DATABASE_PASSWORD: supersecret
      VIKUNJA_DATABASE_TYPE: mysql
      VIKUNJA_DATABASE_USER: vikunja
      VIKUNJA_DATABASE_DATABASE: vikunja
      VIKUNJA_SERVICE_JWTSECRET: <a super secure random secret>
      VIKUNJA_SERVICE_FRONTENDURL: https://<your public frontend url with slash>/
    volumes:
      - ./files:/app/vikunja/files
    networks:
      - web
      - default
    depends_on:
      - db
    restart: unless-stopped
    labels:
      - "traefik.enable=true"
      - "traefik.http.routers.vikunja-api.rule=Host(`vikunja.example.com`) && (PathPrefix(`/api/v1`) || PathPrefix(`/dav/`) || PathPrefix(`/.well-known/`))"
      - "traefik.http.routers.vikunja-api.entrypoints=https"
      - "traefik.http.routers.vikunja-api.tls.certResolver=acme"
  frontend:
    image: vikunja/frontend
    labels:
      - "traefik.enable=true"
      - "traefik.http.routers.vikunja-frontend.rule=Host(`vikunja.example.com`)"
      - "traefik.http.routers.vikunja-frontend.entrypoints=https"
      - "traefik.http.routers.vikunja-frontend.tls.certResolver=acme"
    networks:
      - web
      - default
    restart: unless-stopped
  db:
    image: mariadb:10
    command: --character-set-server=utf8mb4 --collation-server=utf8mb4_unicode_ci
    environment:
      MYSQL_ROOT_PASSWORD: supersupersecret
      MYSQL_USER: vikunja
      MYSQL_PASSWORD: supersecret
      MYSQL_DATABASE: vikunja
    volumes:
      - ./db:/var/lib/mysql
    restart: unless-stopped
    command: --max-connections=1000

networks:
  web:
    external: true

Example with traefik 1 #

This example assumes traefik in version 1 installed and configured to use docker as a configuration provider.

version: '3'

services:
  api:
    image: vikunja/api
    environment:
      VIKUNJA_DATABASE_HOST: db
      VIKUNJA_DATABASE_PASSWORD: supersecret
      VIKUNJA_DATABASE_TYPE: mysql
      VIKUNJA_DATABASE_USER: vikunja
      VIKUNJA_DATABASE_DATABASE: vikunja
      VIKUNJA_SERVICE_JWTSECRET: <a super secure random secret>
      VIKUNJA_SERVICE_FRONTENDURL: https://<your public frontend url with slash>/
    volumes:
      - ./files:/app/vikunja/files
    networks:
      - web
      - default
    depends_on:
      - db
    restart: unless-stopped
    labels:
      - "traefik.docker.network=web"
      - "traefik.enable=true"
      - "traefik.frontend.rule=Host:vikunja.example.com;PathPrefix:/api/v1,/dav/,/.well-known"
      - "traefik.port=3456"
      - "traefik.protocol=http"
  frontend:
    image: vikunja/frontend
    labels:
      - "traefik.docker.network=web"
      - "traefik.enable=true"
      - "traefik.frontend.rule=Host:vikunja.example.com;PathPrefix:/"
      - "traefik.port=80"
      - "traefik.protocol=http"
    networks:
      - web
      - default
    restart: unless-stopped
  db:
    image: mariadb:10
    command: --character-set-server=utf8mb4 --collation-server=utf8mb4_unicode_ci
    environment:
      MYSQL_ROOT_PASSWORD: supersupersecret
      MYSQL_USER: vikunja
      MYSQL_PASSWORD: supersecret
      MYSQL_DATABASE: vikunja
    volumes:
      - ./db:/var/lib/mysql
    restart: unless-stopped
    command: --max-connections=1000

networks:
  web:
    external: true

Example with nginx as proxy #

You’ll need to save this nginx configuration on your host under nginx.conf (or elsewhere, but then you’d need to adjust the proxy mount at the bottom of the compose file):

server {
    listen 80;

    location / {
        proxy_pass http://frontend:80;
    }

    location ~* ^/(api|dav|\.well-known)/ {
        proxy_pass http://api:3456;
        client_max_body_size 20M;
    }
}
NOTE: If you change the max upload size in Vikunja's settings, you'll need to also change the client_max_body_size in the nginx proxy config.

docker-compose.yml config:

version: '3'

services:
  db:
    image: mariadb:10
    command: --character-set-server=utf8mb4 --collation-server=utf8mb4_unicode_ci
    environment:
      MYSQL_ROOT_PASSWORD: supersecret
      MYSQL_USER: vikunja
      MYSQL_PASSWORD: secret
      MYSQL_DATABASE: vikunja
    volumes:
      - ./db:/var/lib/mysql
    restart: unless-stopped
  api:
    image: vikunja/api
    environment:
      VIKUNJA_DATABASE_HOST: db
      VIKUNJA_DATABASE_PASSWORD: secret
      VIKUNJA_DATABASE_TYPE: mysql
      VIKUNJA_DATABASE_USER: vikunja
      VIKUNJA_DATABASE_DATABASE: vikunja
      VIKUNJA_SERVICE_JWTSECRET: <a super secure random secret>
      VIKUNJA_SERVICE_FRONTENDURL: https://<your public frontend url with slash>/
    volumes:
      - ./files:/app/vikunja/files
    depends_on:
      - db
    restart: unless-stopped
  frontend:
    image: vikunja/frontend
    restart: unless-stopped
  proxy:
    image: nginx
    ports:
      - 80:80
    volumes:
      - ./nginx.conf:/etc/nginx/conf.d/default.conf:ro
    depends_on:
      - api
      - frontend
    restart: unless-stopped

Example with Caddy v2 as proxy #

You will need the following Caddyfile on your host (or elsewhere, but then you’d need to adjust the proxy mount at the bottom of the compose file):

vikunja.example.com {
    reverse_proxy /api/* api:3456
    reverse_proxy /.well-known/* api:3456
    reverse_proxy /dav/* api:3456
    reverse_proxy frontend:80
}

docker-compose.yml config:

version: '3'

services:
  db:
    image: mariadb:10
    command: --character-set-server=utf8mb4 --collation-server=utf8mb4_unicode_ci
    environment:
      MYSQL_ROOT_PASSWORD: supersecret
      MYSQL_USER: vikunja
      MYSQL_PASSWORD: secret
      MYSQL_DATABASE: vikunja
    volumes:
      - ./db:/var/lib/mysql
    restart: unless-stopped
  api:
    image: vikunja/api
    environment:
      VIKUNJA_DATABASE_HOST: db
      VIKUNJA_DATABASE_PASSWORD: secret
      VIKUNJA_DATABASE_TYPE: mysql
      VIKUNJA_DATABASE_USER: vikunja
      VIKUNJA_DATABASE_DATABASE: vikunja
      VIKUNJA_SERVICE_JWTSECRET: <a super secure random secret>
      VIKUNJA_SERVICE_FRONTENDURL: https://<your public frontend url with slash>/
    volumes:
      - ./files:/app/vikunja/files
    depends_on:
      - db
    restart: unless-stopped
  frontend:
    image: vikunja/frontend
    restart: unless-stopped
  caddy:
    image: caddy
    restart: unless-stopped
    ports:
        - "80:80"
        - "443:443"
    depends_on:
      - api
      - frontend
    volumes:
        - ./Caddyfile:/etc/caddy/Caddyfile:ro

Setup on a Synology NAS #

There is a proxy preinstalled in DSM, so if you want to access vikunja from outside, you can prepare 2 proxy rules:

  • a redirection rule for vikunja’s api (see example screenshot using port 3456)
  • a similar redirection rule for vikunja’s frontend (using port 4321)

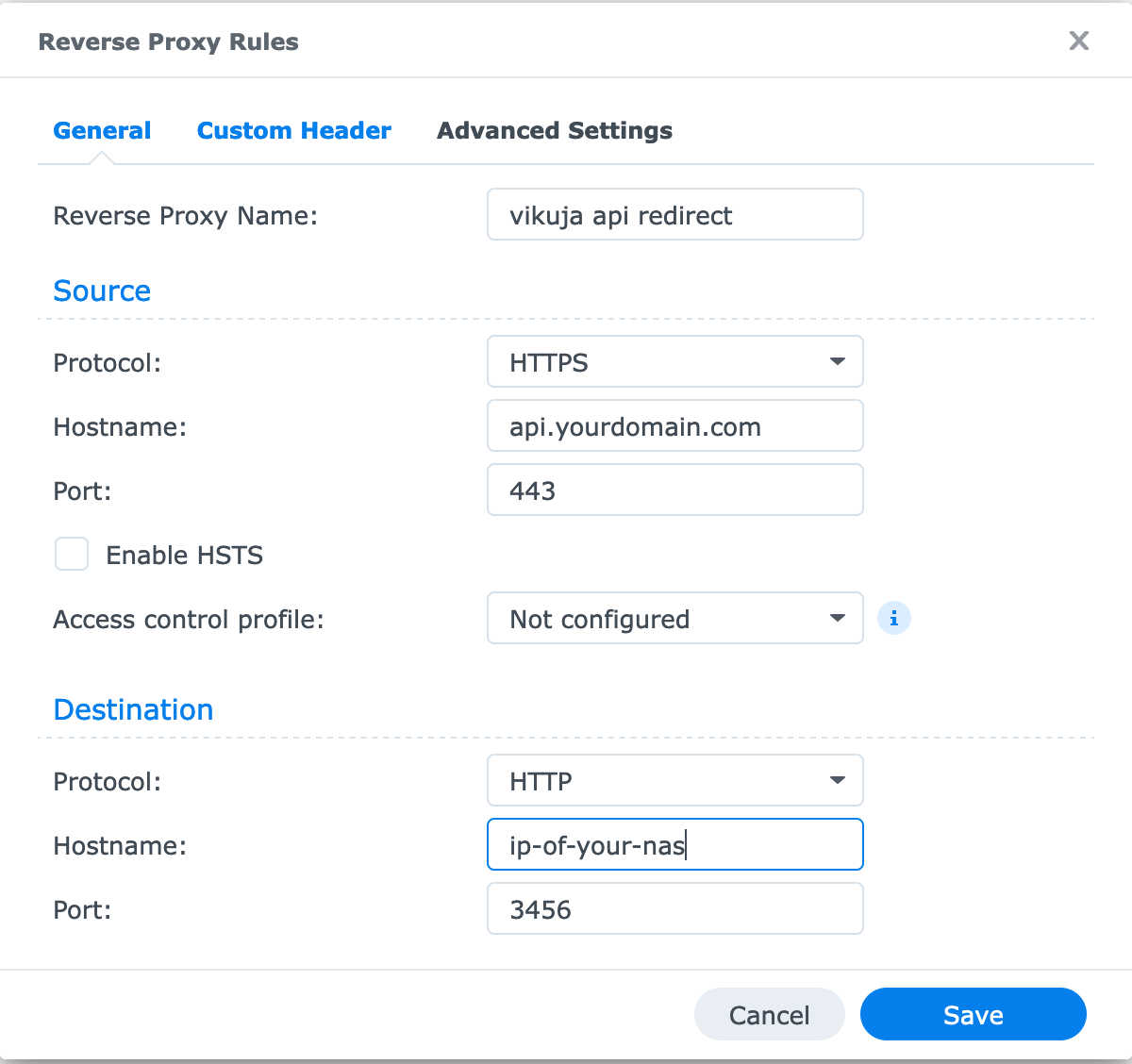

Synology Proxy Settings

You should also add 2 empty folders for mariadb and vikunja inside Synology’s docker main folders:

  • Docker
    • vikunja
    • mariadb

Synology has its own GUI for managing Docker containers… But it’s easier via docker compose.

To do that, you can

  • either activate SSH and paste the adapted compose file in a terminal (using Putty or similar)
  • without activating SSH as a “custom script” (go to Control Panel / Task Scheduler / Create / Scheduled Task / User-defined script)
  • without activating SSH, by using Portainer (you have to install first, check out this tutorial for exmple):
    1. Go to Dashboard / Stacks click the button “Add Stack”
    2. Give it the name Vikunja and paste the adapted docker compose file
    3. Deploy the Stack with the “Deploy Stack” button:

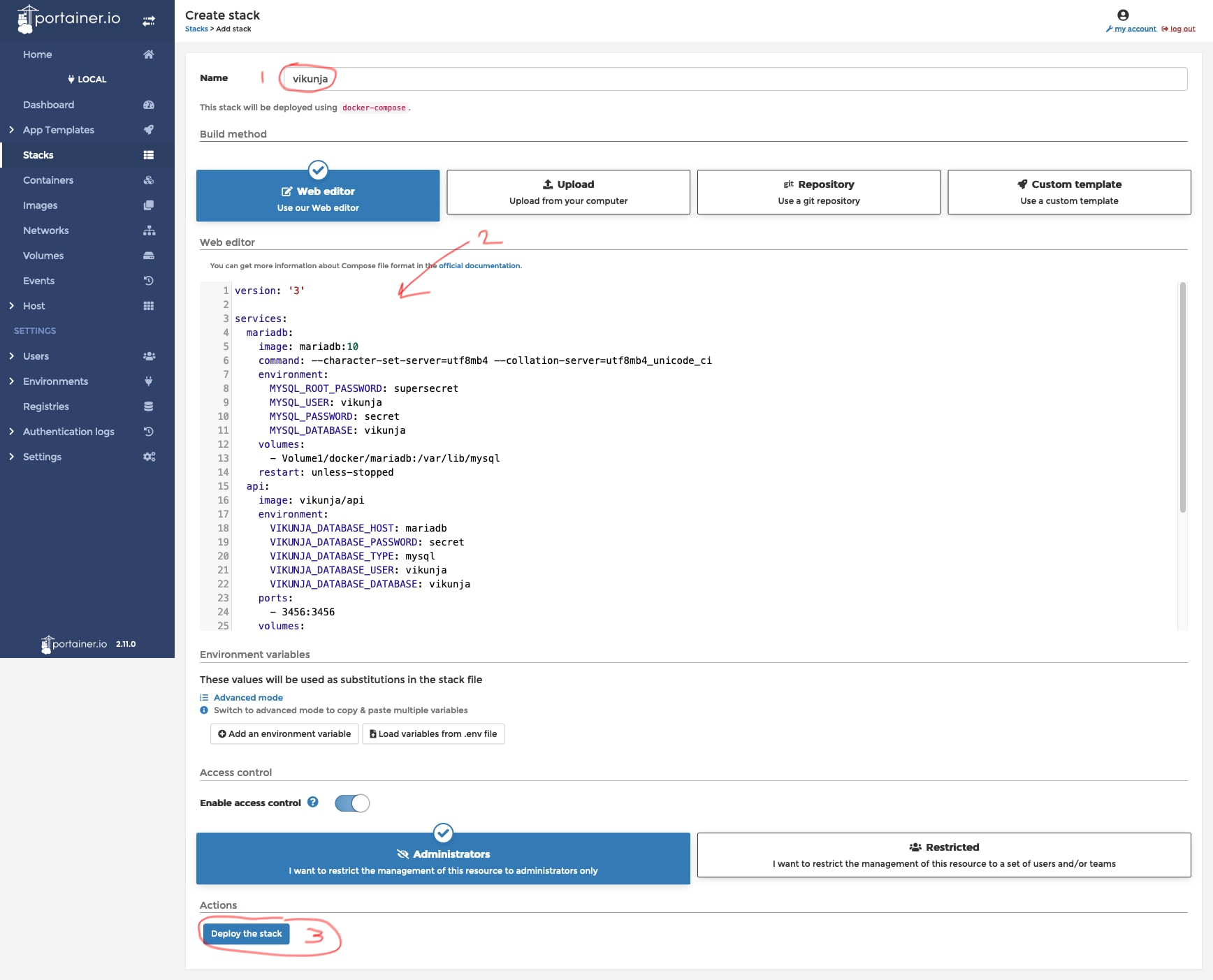

Portainer Stack deploy

The docker-compose file we’re going to use is very similar to the example without any proxy above:

version: '3'

services:
  db:
    image: mariadb:10
    command: --character-set-server=utf8mb4 --collation-server=utf8mb4_unicode_ci
    environment:
      MYSQL_ROOT_PASSWORD: supersecret
      MYSQL_USER: vikunja
      MYSQL_PASSWORD: secret
      MYSQL_DATABASE: vikunja
    volumes:
      - ./db:/var/lib/mysql
    restart: unless-stopped
  api:
    image: vikunja/api
    environment:
      VIKUNJA_DATABASE_HOST: db
      VIKUNJA_DATABASE_PASSWORD: secret
      VIKUNJA_DATABASE_TYPE: mysql
      VIKUNJA_DATABASE_USER: vikunja
      VIKUNJA_DATABASE_DATABASE: vikunja
      VIKUNJA_SERVICE_JWTSECRET: <a super secure random secret>
      VIKUNJA_SERVICE_FRONTENDURL: https://<your public frontend url with slash>/
    ports:
      - 3456:3456
    volumes:
      - ./files:/app/vikunja/files
    depends_on:
      - db
    restart: unless-stopped
  frontend:
    image: vikunja/frontend
    ports:
      - 4321:80
    environment:
      VIKUNJA_API_URL: http://vikunja-api-domain.tld/api/v1
    restart: unless-stopped

You may want to change the volumes to match the rest of your setup.

Once deployed, you might want to change the PUID and GUID settings or set the time zone.

After registering all your users, you might also want to disable the user registration.
